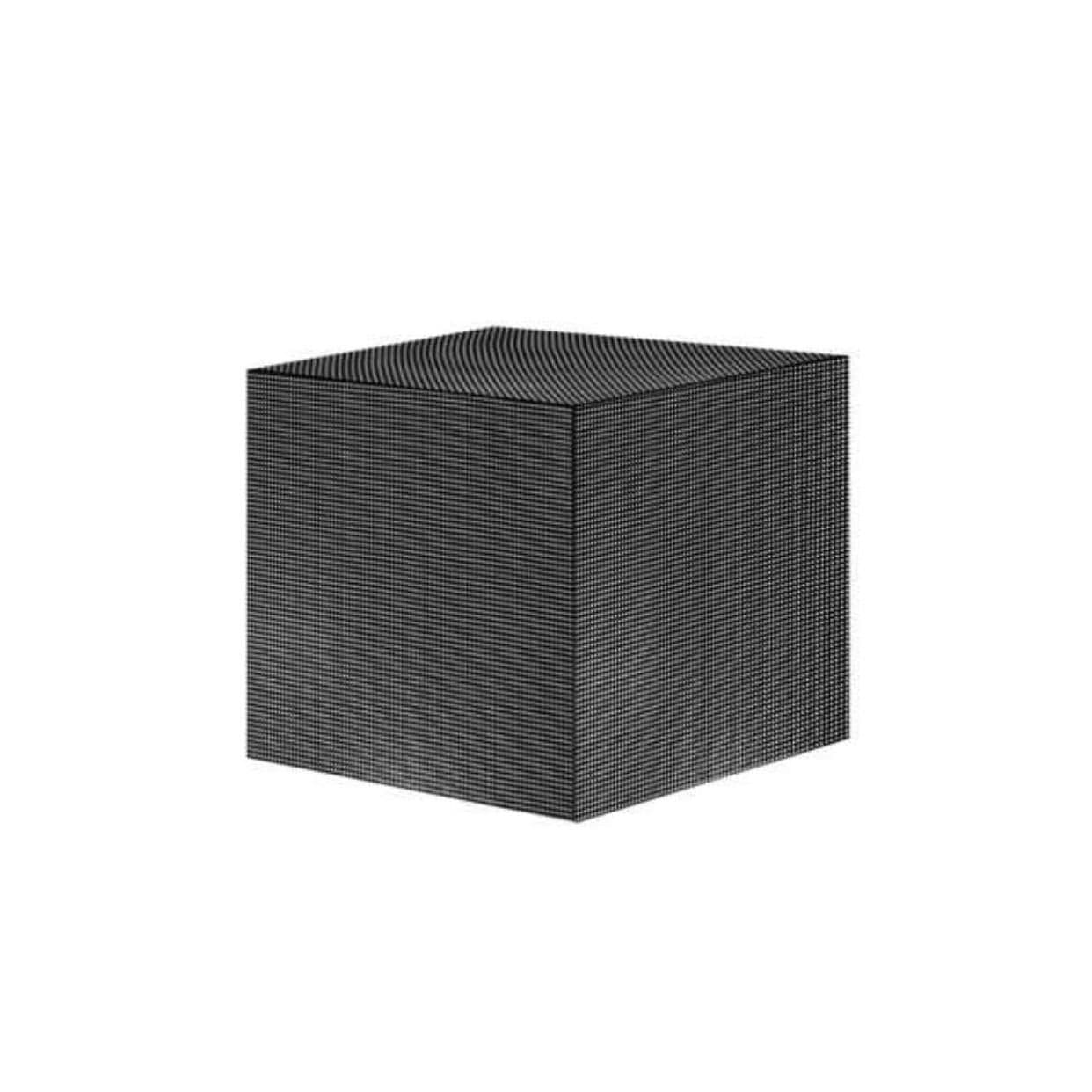

Outdoor Cube LED Screen
Creative Outdoor Cube LED Display Series
Application Scenarios Storefronts • Hotel lobbies • KTV corridors • Pedestrian streets • Public squares
Request a QuoteSpecifications
| Model | CL-OC25|CL-OC30|CL-OC39|CL-OC40 |
|---|---|
| Pixel Pitch | 2.5 mm|3 mm|3.91 mm|4 mm |
| Resolution / Face | 128*128|160*160 |
| Module Size | 320mm*160mm|192mm*192mm|250mm*250mm |
| Product Size | 320mm*320mm|384mm*384mm|500mm*500mm|640mm*640mm |
| Weight | ≤15 kg|≤17 kg|≤30 kg|≤43 kg |
| Brightness | ≥5000 cd/㎡ |
| Refresh Rate | 3840Hz|7680 Hz |
| Maintenance | Rear |
| Peak Power | 400 W/㎡ |
| Avg. Power | 200 W/㎡ |
Detailed Parameters:
Pixel density (per model):160,000 / 111,111 / 65,536 / 62,500 pixels/㎡;LED lamp type (per model):1515 / 1921;IP rating:IP65;Viewing angle (H/V):160° / 140°;Lifespan:≥ 100000 hours;Grayscale:16 bit;Cabinet material:Waterproof steel cabinet;Display configurations:4-face (side-mount), 5-face (ceiling-hoist), 6-face (hoist or floor-stand)
Product Highlights:
1、Unique design — the cube screen is a single integrated product for easy relocation, installation and dismantling. Its polyhedral design provides more display faces and viewing angles, delivering true multi-angle playback that goes beyond the viewing-angle limitations of conventional flat LED screens.

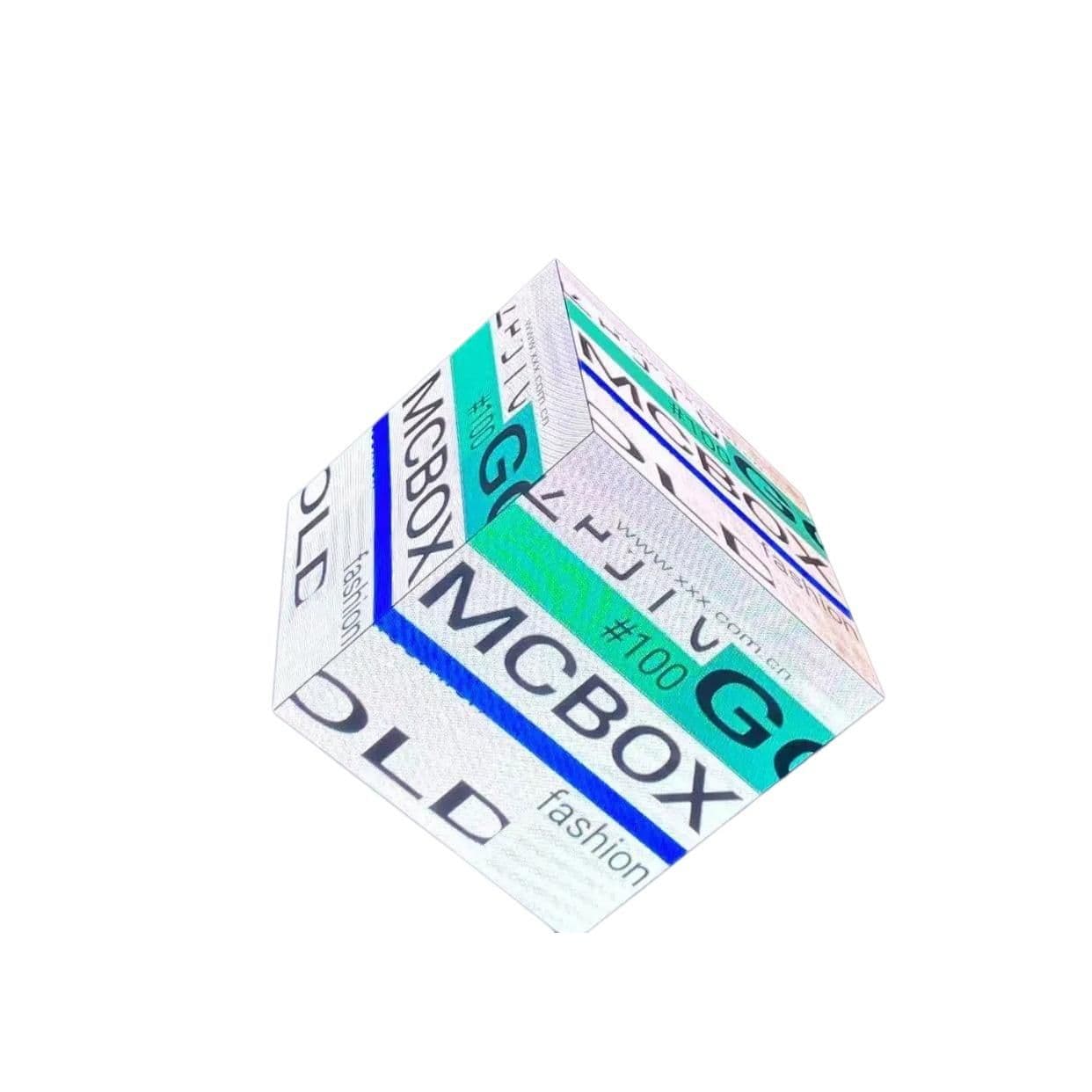

2、Flexible content display — the cube can show different content on each face, offering far greater flexibility and creativity than traditional LED screens for advertising, art performances and exhibitions.
3、Space efficiency & visual impact — the cube creates 3D visual effects that make better use of space and deliver a stronger visual impact on the audience.
4、Easy installation & maintenance — modular design makes installation and maintenance straightforward, saving both labor and time.

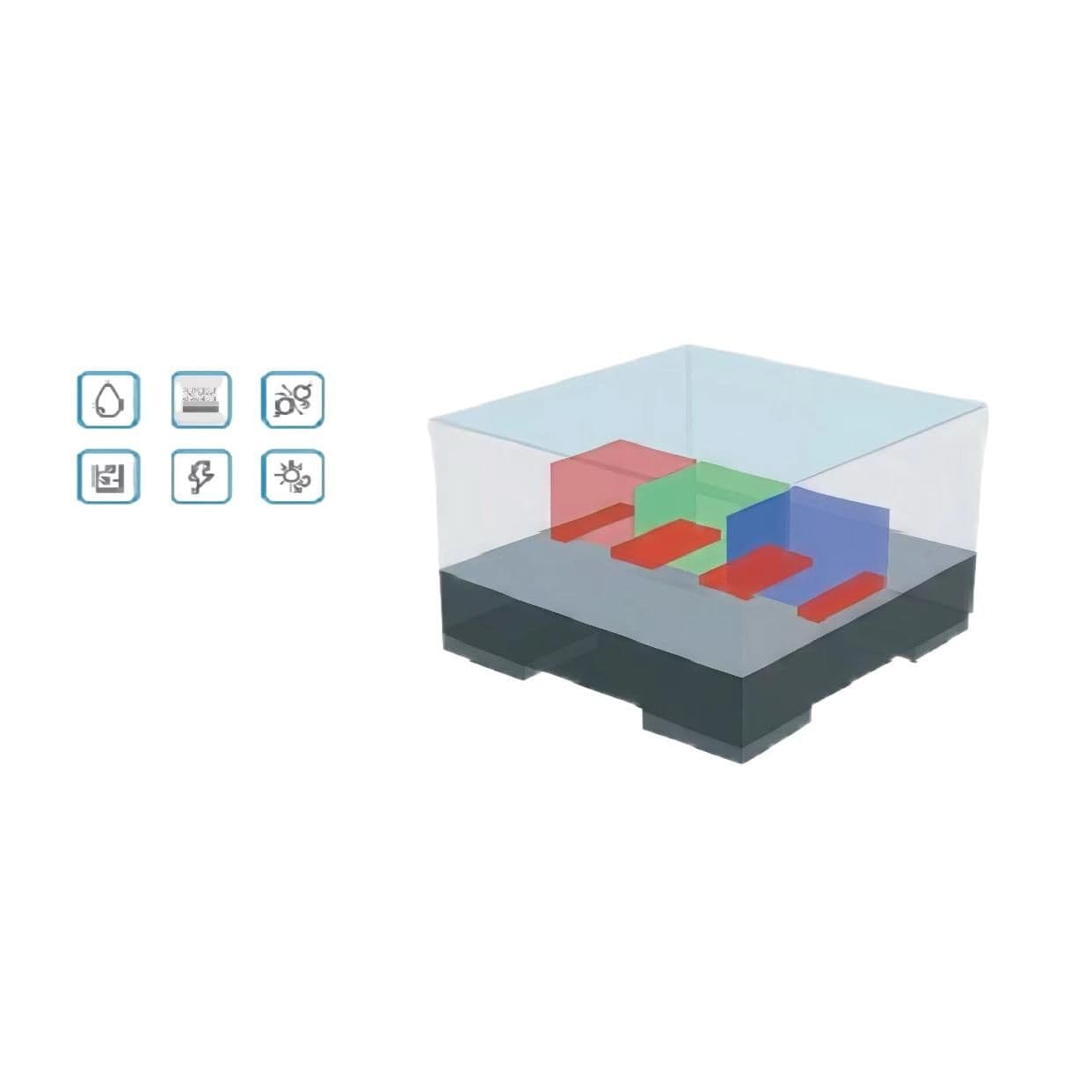

5、High protection rating — modules and cabinet are both waterproofed, achieving IP65+ overall protection.
