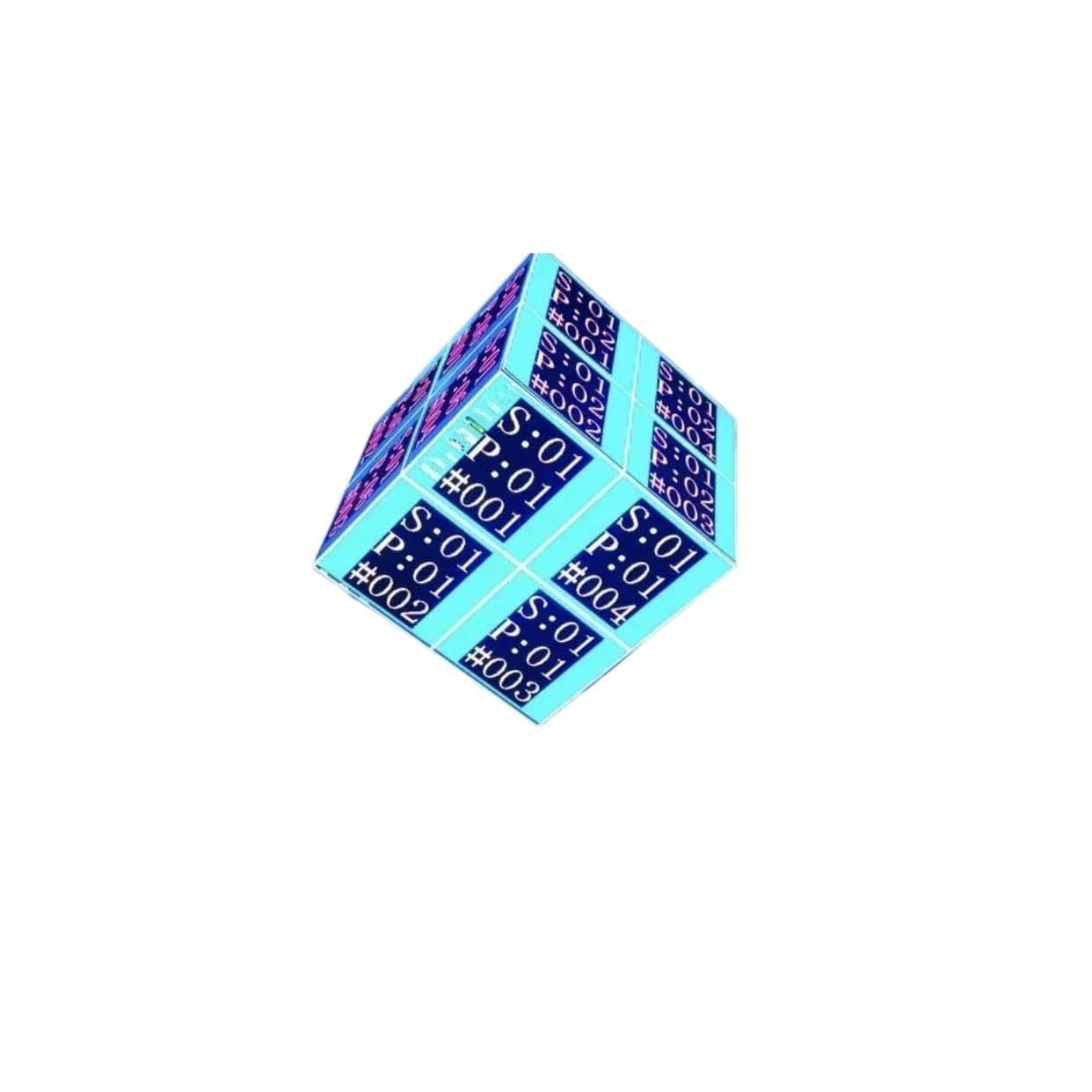

Indoor Cube LED Screen
Creative Indoor Cube LED Display Series

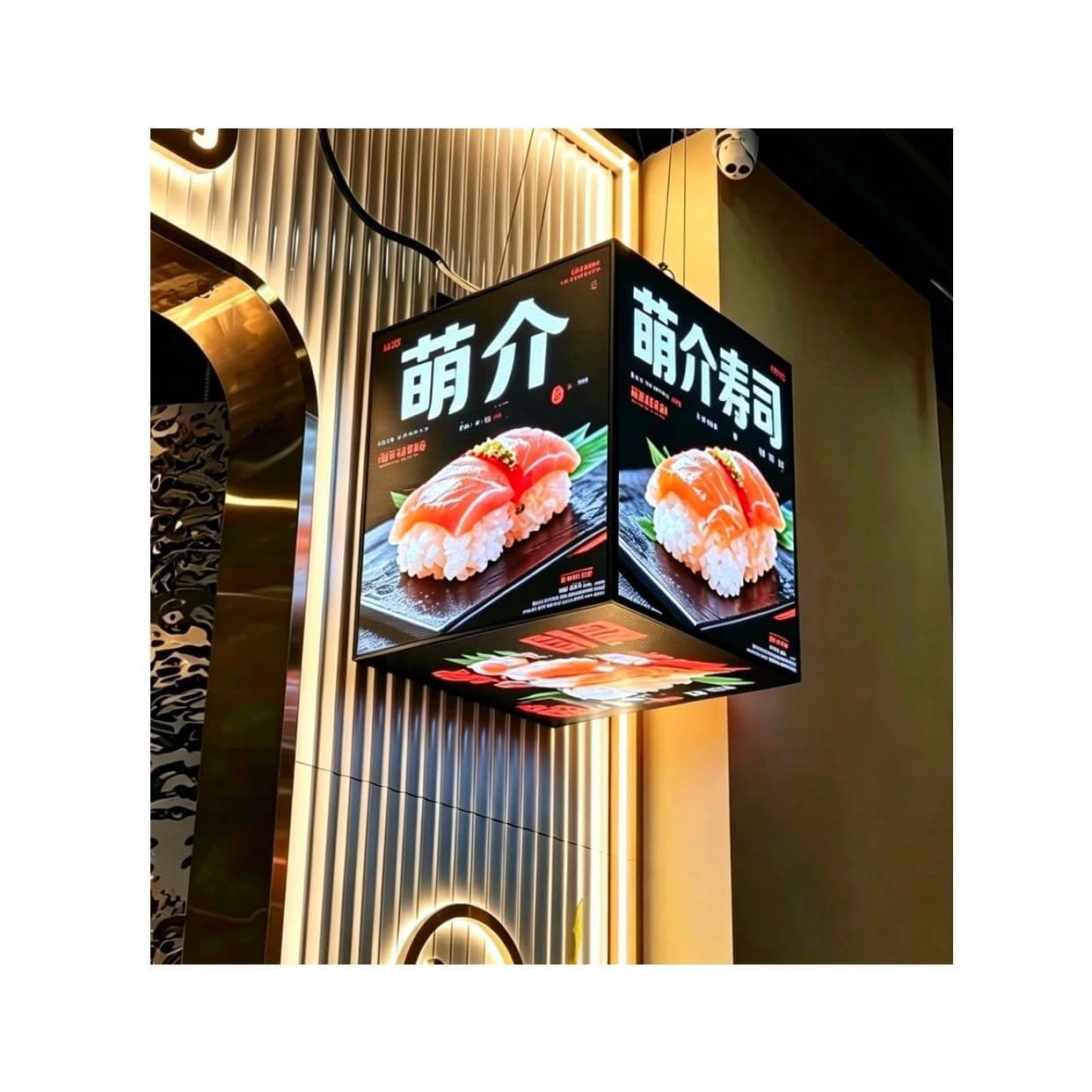

Application Scenarios Storefronts • Hotel lobbies • KTV corridors • Pedestrian streets
Request a QuoteSpecifications
| Model | CL-IC12|CL-IC15|CL-IC18|CL-IC20|CL-IC25 |
|---|---|
| Pixel Pitch | 1.25 mm|1.538 mm|1.86 mm|2 mm|2.5 mm |
| Module Size | 320mm*160 mm |
| Product Size | 320mm*320mm|640mm*640mm|960mm*960mm |
| Weight | ≤8 kg |
| IP Rating | IP54 |
| Brightness | ≥600 cd/㎡ |
| Maintenance | Front |
| Peak Power | 300 W/㎡ |
| Avg. Power | 100 W/㎡ |
Detailed Parameters
Resolution per face (per model)：256*256 | 208*208 | 172*172 | 160*160 | 128*128；Pixel density (per model)：640,000pixels/㎡ / 422,500pixels/㎡ / 288,369pixels/㎡ / 250,000 pixels/㎡/ 160,000 pixels/㎡；LED lamp type (per model)：1010 / 1212 / 1515 / 1921；Viewing angle (H/V)：160° / 140°；Lifespan：≥ 100,000 hours；Grayscale：16 bit；Refresh rate：3840 Hz / 7680 Hz；Cabinet material：Steel cabinet；Display configurations：4-face (side-mount), 5-face (ceiling-hoist), 6-face (hoist or floor-stand)
Product Highlights：
1、Unique design — the cube screen is a single integrated product for easy relocation, installation and dismantling. Its polyhedral design provides more display faces and viewing angles, delivering true multi-angle playback that goes beyond the viewing-angle limitations of conventional flat LED screens.
2、Flexible content display — the cube can show different content on each face, offering far greater flexibility and creativity than traditional LED screens for advertising, art performances and exhibitions.
3、Space efficiency & visual impact — the cube creates 3D visual effects that make better use of space and deliver a stronger visual impact on the audience.
4、Easy installation & maintenance — modular design makes installation and maintenance straightforward, saving both labor and time.

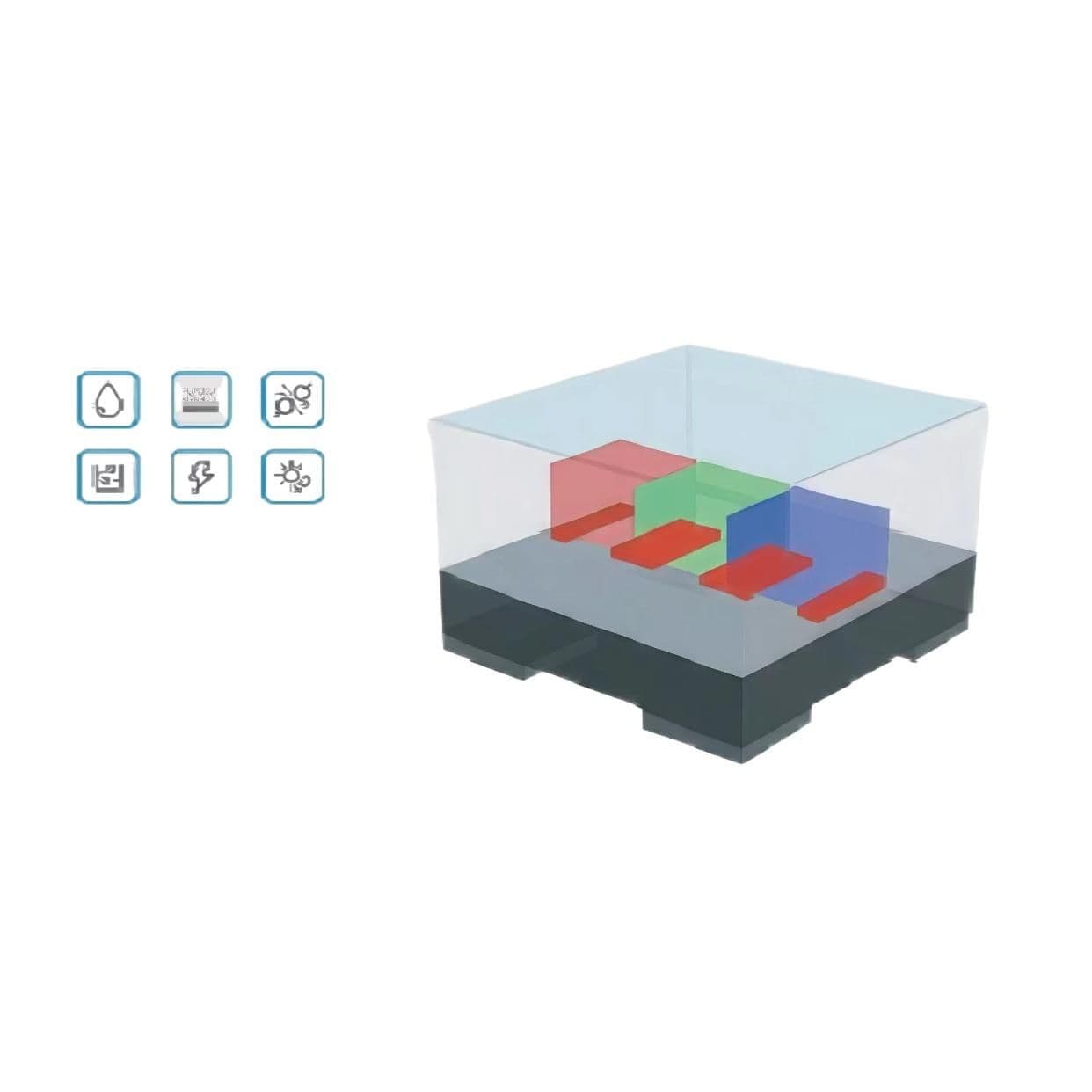

5、GOB module surface finish — the module surface uses GOB potting for water-, dust- and impact-resistance; the surface is easy to clean with a simple wipe from a damp cloth.
