Transparent LED Screen
Transparent Rental LED Display
Application Scenarios: Concerts · Music Festivals · Shopping Mall Atriums · Exhibitions · Museums · Stage Events · Commercial Displays
Request a QuoteSpecifications
| Model | RL-TP26-52|RL-TP39-78|RL-TP78|RL-TP52-104|RL-TP104 |
|---|---|
| Pixel Pitch | H2.6 - V5.2 mm|H3.91 - V7.82 mm|7.82 mm|H5.21 - V10.42 mm|10.42 mm |
| Cabinet Resolution | 384*192|256*128|128*128|192*96|96*96 |
| Module Size | 125mm*500 mm |
| Cabinet Size | 1000mm*1000mm|1000mm*500mm |
| Weight | ≤15 kg |
| IP Rating | IP30 |
| Brightness | ≥2000 cd/㎡ |
| Grayscale | 16 bit |
| Refresh Rate | 3840 Hz|7680 Hz |
| Maintenance | Front |
| Peak Power | 600 W/㎡ |
| Avg. Power | 300 W/㎡ |
Detailed Parameters:
Pixel density :73728 pixels/㎡| 32768 pixels/㎡| 16384 pixels/㎡| 18432 pixels/㎡/ 9216 pixels/㎡;LED lamp type:2121;Viewing angle :160° | 140°;Lifespan:≥ 100000 hours
Product Highlights:
1. High Transparency for See-Through Visuals
With light transmittance typically reaching 50%–90%, the transparent LED display maintains visibility of the environment behind the screen. When powered off, the display blends naturally into the background, while dynamic content comes to life when switched on.
2. Seamless Integration of Digital Content and Real Scenes
Dynamic LED content can be displayed over real products, architectural elements or scenery behind the screen, creating a unique combination of virtual and physical visuals. This makes it ideal for immersive stage designs, exhibitions and creative commercial displays.
3. High Brightness for Clear Visuals
Outdoor configurations can reach 5,000–5,500 cd/m², providing bright and clear images even in strong outdoor lighting and direct sunlight.

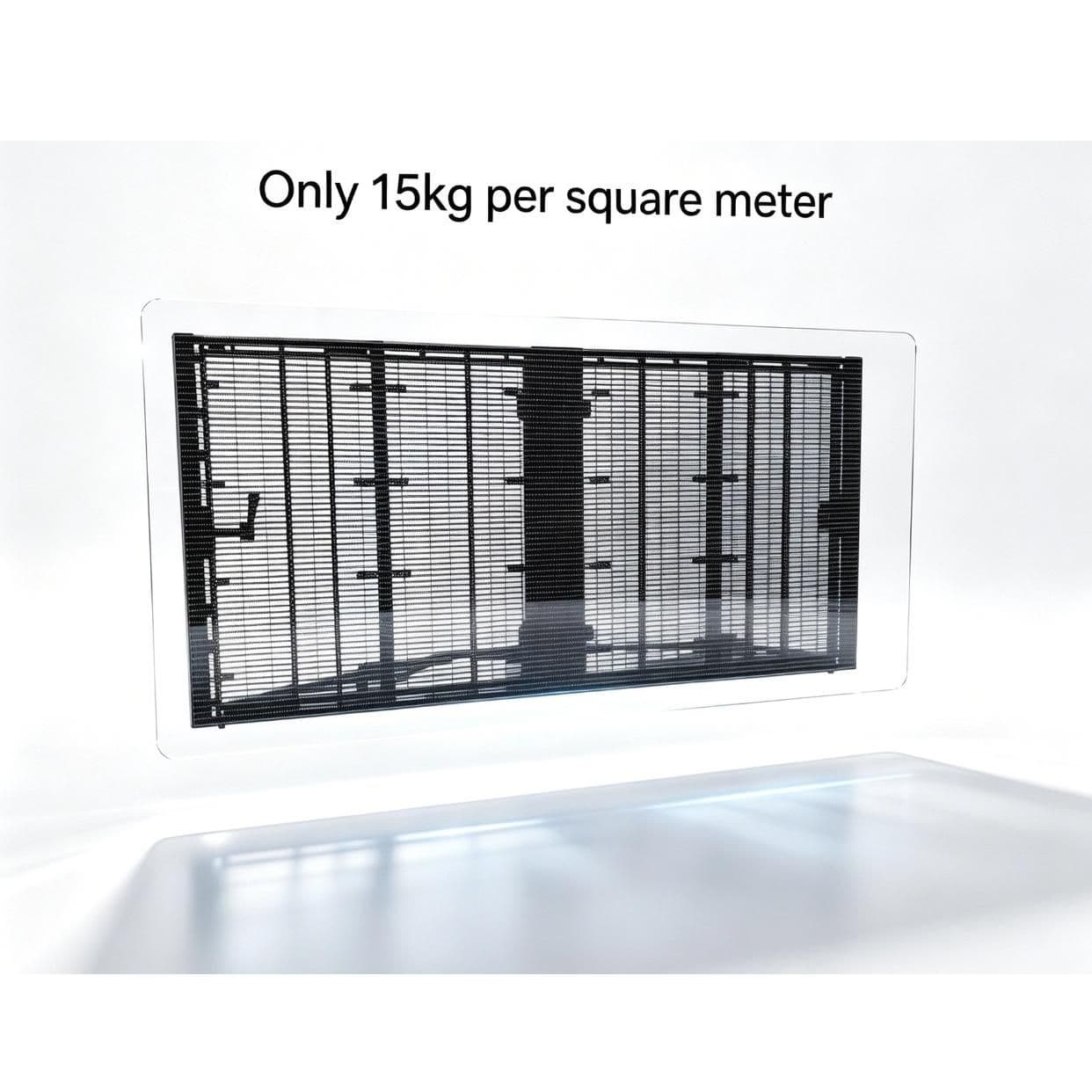

4. Ultra-Lightweight and Slim Cabinet Design
Die-cast aluminum cabinets can weigh as little as 7.5 kg per cabinet with a thickness of only 75–82 mm. The lightweight structure helps reduce the load on supporting structures and simplifies transportation, installation and dismantling.
5. Fast Installation and Rigging
Quick-lock fasteners and ergonomic handles enable fast assembly and dismantling with minimal tools. The design is particularly suitable for touring concerts, festivals and other events requiring frequent setup and venue changes.
6. Flexible Curved Splicing
The display supports approximately ±10° inward and outward bending, allowing cabinets to form curved walls, arcs, circles and other creative configurations. This flexibility enables designers to create distinctive stage backgrounds and immersive visual structures.
Product Details
