Outdoor Rental LED Screen
Outdoor Rental LED Display
Outdoor rental LED display designed for outdoor concerts, music festivals, parks, outdoor exhibitions, scenic areas and other large-scale outdoor events.
Request a QuoteSpecifications
| Model | RL-OR29|RL-OR39|RL-OR48 |
|---|---|
| Pixel Pitch | 2.97 mm|3.91 mm|4.81 mm |
| Cabinet Resolution | 168*168|128*128|104*104 |
| Module Size | 250mm*250mm |
| Cabinet Size | 500mm*500mm|500mm*1000mm |
| Weight | ≤32 kg |
| IP Rating | IP65 |
| Brightness | ≥4500–6500 cd/㎡ |
| Grayscale | 16 bit |
| Refresh Rate | 3840Hz|7680Hz |
| Maintenance | Rear |
| Peak Power | 800 W/㎡ |
| Avg. Power | 400 W/㎡ |
Detailed Parameters:
Pixel density :112,896 pixels/㎡| 65,536 pixels/㎡| 43,264 pixels/㎡;LED lamp type:1921;Viewing angle :160° | 140°;Lifespan:≥ 100,000 hours
Product Highlights:

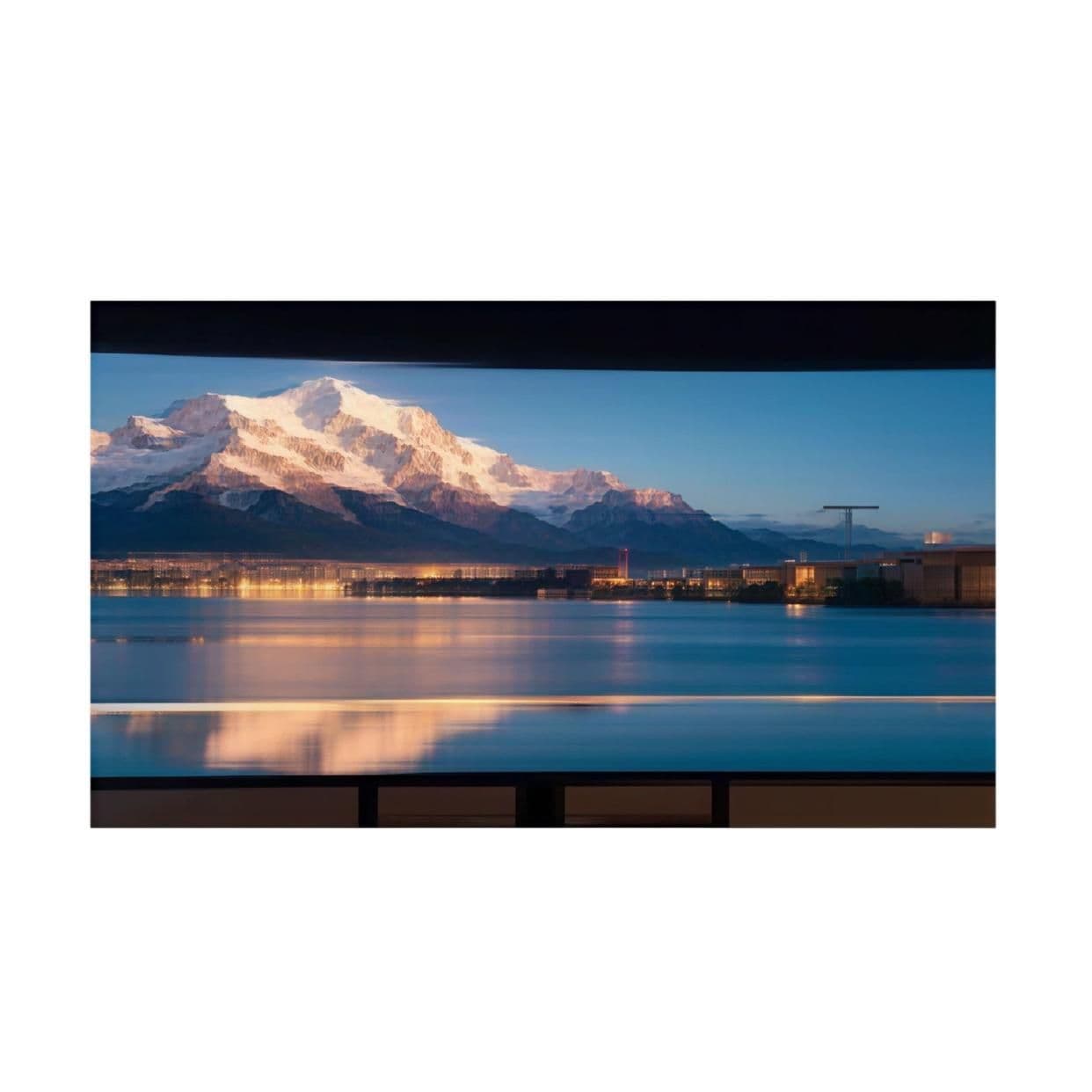

1. Ultra-High Brightness for Strong Outdoor Light
With typical brightness of 4500–6500 nits and automatic or manual dimming, the outdoor rental LED display maintains clear and vivid images even under strong midday sunlight.
2. IP65/IP66 Protection for Outdoor Weather
The whole unit features IP65/IP66 protection, with sealed cabinets, dust-proof and splash-proof construction, and waterproof cabinet joints for reliable operation in rain and humid outdoor environments.
3. Wide-Temperature Operation and Efficient Cooling
Built-in thermal management, including efficient cooling fans and heat-sink structures, supports stable operation from -20°C to 50°C, suitable for both cold winters and hot summers.
4. Wind-Load and Deformation Resistance
High-strength cabinet structures, reinforced locks and mounting brackets help maintain stability and reduce deformation under outdoor wind loads, protecting the display system during events.
5. Impact-Resistant Cabinet Design
High-hardness PC or acrylic masks provide UV and impact resistance, helping protect LED modules from bumps and impacts during transportation, rigging and repeated outdoor events.

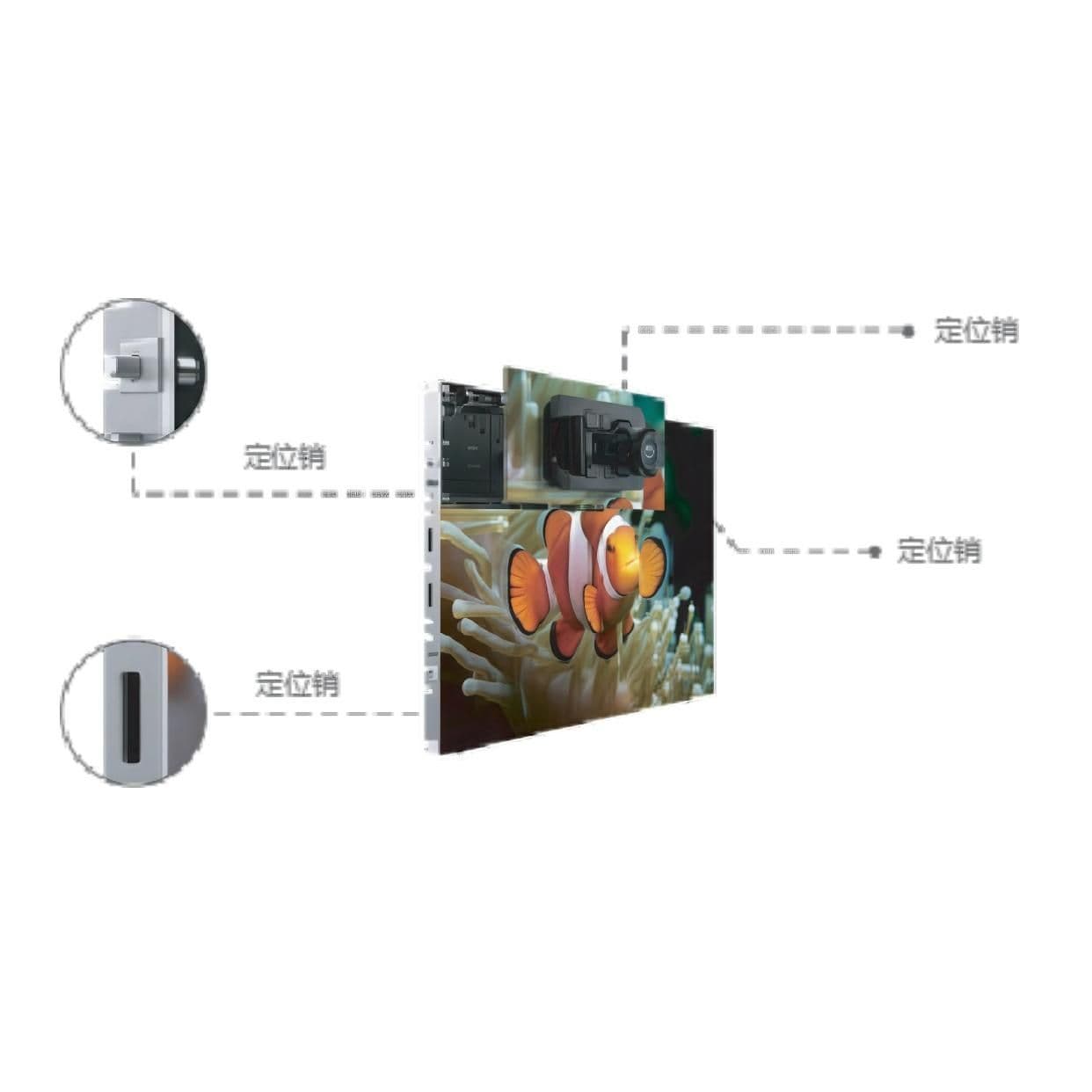

6. Fast Rigging and Quick Turnaround
A mature quick-lock system allows fast installation and dismantling, while lightweight cabinet options such as magnesium-alloy designs help reduce load-in and load-out time for touring concerts, festivals and sporting events.
7. Standardized Power and Signal Interfaces
Standardized power and signal connectors with loop-through backup help maintain display continuity. When a cabinet encounters a fault, the signal can bypass the affected cabinet without interrupting the overall display.
8. High Refresh Rate and Camera-Friendly Image Quality
A refresh rate of over 3840 Hz, combined with high grayscale performance, helps reduce scan lines and moiré during camera shooting, making the display suitable for TV broadcasting, live streaming and event recording.
9. Wide Viewing Angle for Large-Audience Coverage
Horizontal and vertical viewing angles of over 140° provide consistent color and brightness across large audiences in stadiums, plazas, parks and other outdoor venues.
Product Details
