Indoor Rental LED Screen
Indoor Rental LED Display
Indoor rental LED display designed for concerts, music festivals, shopping-mall atriums, exhibitions, museums, conferences and other indoor events.
Request a QuoteSpecifications
| Model | RL-IR19|RL-IR26|RL-IR29|RL-IR39|RL-IR48 |
|---|---|
| Pixel Pitch | 1.95 mm|2.6 mm|2.97 mm|3.91 mm|4.81 mm |
| Cabinet Resolution | 256*512|192*384|168*336|128*256|104*208 |
| Module Size | 250mm*250mm |
| Cabinet Size | 500mm*1000mm|500mm*500mm |
| Weight | ≤30 kg |

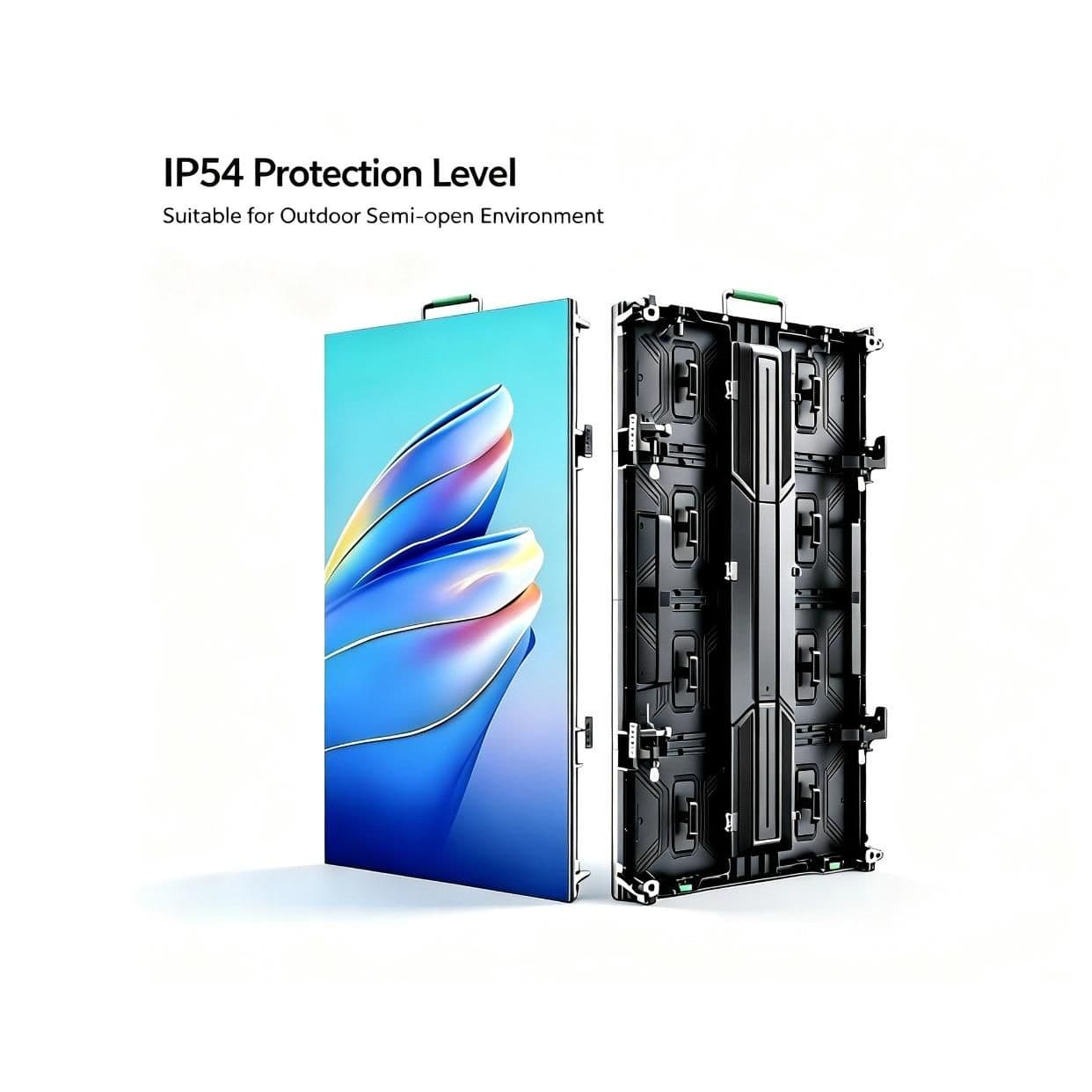

| IP Rating | IP54 |
| Brightness | ≥800 cd/㎡ |
| Grayscale | 16 bit |
| Refresh Rate | 3840Hz|7680Hz |
| Maintenance | Rear |
| Peak Power | 800 W/㎡ |
| Avg. Power | 300 W/㎡ |
Detailed Parameters:
Pixel density :262,144 pixels/㎡| 147,656 pixels/㎡/|112,896 pixels/㎡| 65,536 pixels/㎡| 43,264 pixels/㎡;LED lamp type :1515 | 1921;Viewing angle :160° | 140°;Lifespan:≥ 100,000 hours
Product Highlights:
1. Lightweight Cabinet with Quick-Lock System
Die-cast aluminum or magnesium-alloy cabinets, typically weighing 5–7.5 kg each, feature standardized quick locks for fast tool-free assembly. A 100 m² LED wall can be built in a single day.
2. Flexible Modular Splicing
Freely combine cabinets into rectangles, arcs, circles and irregular shapes to create customized indoor rental LED displays for stages, exhibition halls, conferences and other venues.
3. Easy Transport and Storage
Custom flight cases provide anti-shock, anti-vibration and stackable storage, helping reduce transportation, storage and turnaround costs for frequent event use.

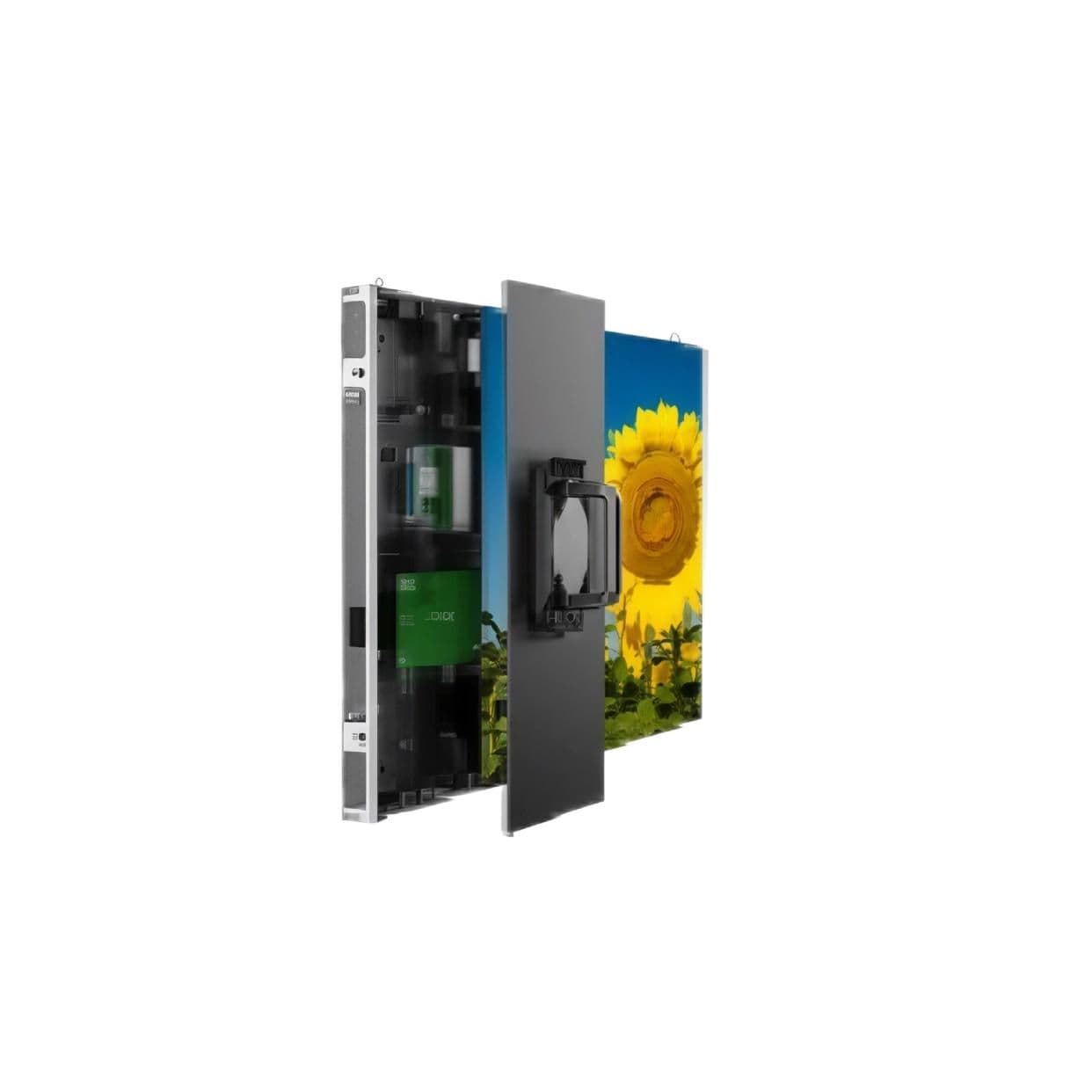

4. Front and Rear Maintenance
Magnetic front module removal and rear service access enable fast troubleshooting in space-limited installations, including wall-mounted and suspended applications. A single-module failure can be serviced without affecting the rest of the LED wall.
5. Enhanced Protection and Impact Resistance
Reinforced anti-collision corners and durable cabinet structures are designed for frequent transportation and repeated event use. Indoor units typically achieve IP30–IP45, while selected models feature GOB or nano-coating for added moisture and scratch resistance.

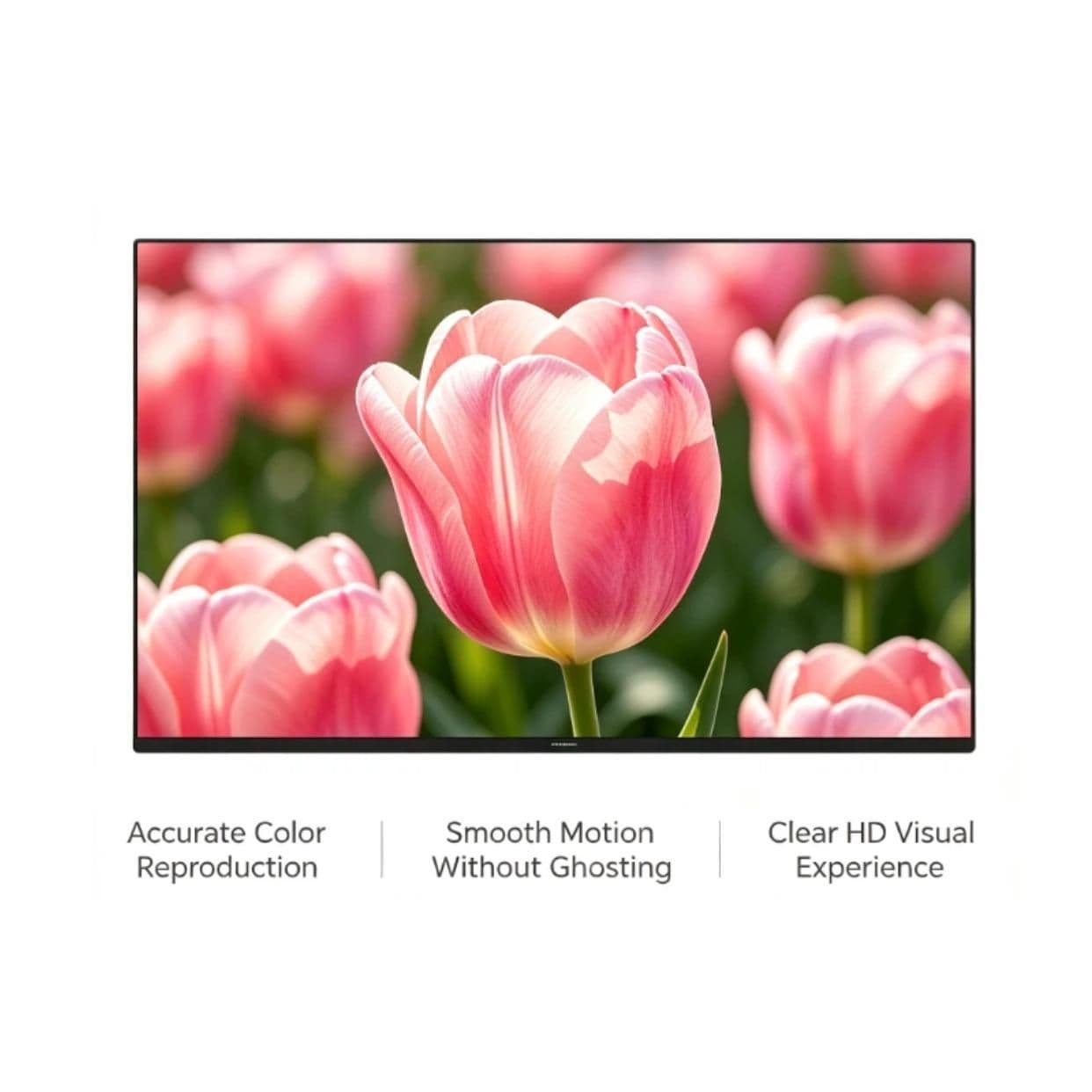

6. High Refresh Rate and Broadcast-Grade Image Quality
A refresh rate of ≥3840 Hz and 14–16-bit grayscale deliver smooth, flicker-free images with reduced moiré, making the display suitable for live broadcasting, video recording, conferences and camera-facing events.
7. High Brightness, Wide Color Gamut and Pixel-Level Calibration
Brightness can be adjusted according to indoor lighting conditions. Factory and periodic point-by-point calibration help maintain consistent color and brightness across cabinets, delivering a smooth and uniform image.
Product Details
